Is the Breezaire WKSL 4000 the Right Cooling System for Your Cellar?

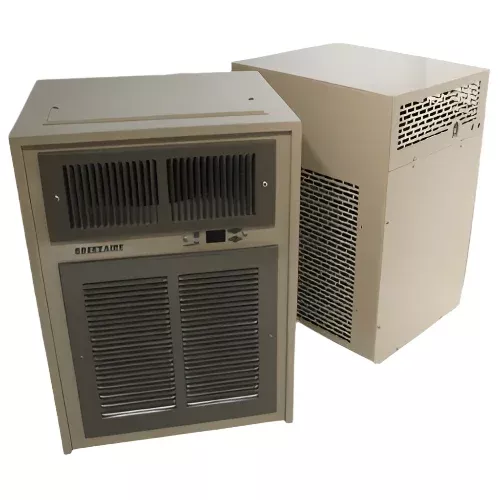

The Breezaire WKSL 4000 is a split wine cellar cooling system designed for properly constructed residential wine cellars up to approximately 1,000 cubic feet.
Unlike through-the-wall systems, this unit separates the evaporator (installed inside the cellar) from the condenser (installed remotely), reducing interior mechanical noise and allowing flexible condenser placement.
It is built specifically for long-term wine storage — not comfort cooling — and is engineered to maintain stable cellar temperatures around 55°F when installed in a sealed, insulated wine room.
Also available in theBreezaire WKSL 2200, offering a more compact solution while delivering reliable cooling performance for smaller wine cellars up to 265 cu. ft. compared to the WKSL 4000.
Quick Fit Summary
Cooling Type: Split system (remote condenser)
Maximum Capacity: Up to 1,000 cu. ft. (with proper insulation)
Installation: Licensed HVAC professional required
Electrical: 110V / 60Hz
Refrigerant: R-134a
Best For: Medium-to-large residential wine cellars
When the WKSL 4000 Is the Correct Choice
Choose this system if:
- Your cellar volume is between 700–1,000 cubic feet
- The room is insulated (minimum R19 walls / R30 ceiling)
- A continuous vapor barrier is installed
- The cellar door is insulated and airtight
- You want lower interior noise than through-the-wall systems
- A remote condenser location is available
This model is commonly selected for:
- Dedicated basement wine rooms
- Living room display cellars
- Luxury residential projects
- Cellars where wall venting is not practical
When This Model Is Not Appropriate
Do not select the WKSL 4000 if:
- Your cellar is under 400 cubic feet
- The space is uninsulated or lacks a vapor barrier
- The door is not sealed
- You want a DIY installation
- The condenser cannot be placed in a ventilated location
Improper application results in:
- Continuous runtime
- Poor humidity stability
- Temperature fluctuation
- Premature compressor wear
Correct sizing protects both your wine and the system.
How the WKSL 4000 Works
The system consists of two components:
1. Fancoil (Evaporator Unit)
Installed inside the wine cellar to deliver cooled air.
2. Condenser Unit
Installed remotely (garage, mechanical room, or exterior location).
Refrigerant lines connect both components. Because this is a split refrigeration system, installation must be completed by a licensed HVAC professional.
Cooling Capacity & Build Assumptions
Maximum rated capacity: Up to 1,000 cubic feet
This rating assumes:
- Proper insulation (R19 walls / R30 ceiling minimum)
- Airtight construction
- Continuous vapor barrier
- Minimal unprotected glass exposure
- Moderate ambient temperature conditions
If your cellar includes heavy glass walls or high ambient heat, effective capacity is reduced.
Physical Dimensions (H × W × D)
Fancoil (Evaporator): 19.75″ × 14.25″ × 12.8″
Condenser Unit: 19.75″ × 14.25″ × 12.38″
Installer must allow additional clearance for:
- Refrigerant line routing
- Air circulation
- Service access
Do not enclose condenser in an unventilated space.
Weight
Fancoil: 45 lbs
Condenser: 55 lbs
Mounting surface must support unit weight plus hardware.
Electrical Requirements
Voltage: 110 V
Frequency: 60 Hz
A dedicated circuit is recommended.
Electrical installation must comply with local code. Improper voltage supply can damage compressor components.
Refrigerant
Refrigerant Type: R-134a
Refrigerant handling and servicing must be performed by certified HVAC professionals.
Manuals for Breezaire WKSL 4000
- WKSL 4000 Installation Manual
- Breezaire Sentry III Plus Controller Owner’s Manual
- WKSL Warranty
Controls & Monitoring Features
- Electronic controls
- Digital temperature display
- High-temperature alarm
- Integrated humidity support
The high-temperature alarm alerts if cellar temperature rises above the set, protecting wine from extended exposure to heat.
Temperature & Humidity Performance
- Designed operating range: 50–59°F
- Typical storage target: 55°F
Humidity performance depends on cellar construction quality. The system supports humidity stability but does not replace a standalone humidification system in structurally leaky environments.
Installation Requirements
- This is not a plug-and-play unit.
- Installation requires:
- Licensed HVAC professional
- Refrigerant line routing and charging
- Proper condensate management
- Dedicated electrical supply
- Verified insulation and vapor barrier
Condenser must be installed in a ventilated space with appropriate ambient conditions.
Improper installation is the most common cause of premature failure.
Split System vs Through-the-Wall Comparison
| Feature | WKSL 4000 (Split) | Through-the-Wall |
|---|---|---|
| Interior Noise | Lower | Moderate |
| Installation | HVAC required | Possible DIY |
| Condenser Location | Remote | Attached |
| Aesthetic Flexibility | High | Limited |
| Best For | Living areas & premium builds | Utility cellars |
Final Fit Guidance
The Breezaire WKSL 4000 is best suited for properly constructed residential wine cellars up to 1,000 cubic feet where reduced interior noise and stable long-term storage conditions are priorities.
If your cellar includes significant glass exposure, exceeds recommended volume, or lacks proper insulation, sizing should be reviewed before purchase.
Selecting the correct model protects your wine investment and ensures system longevity.
